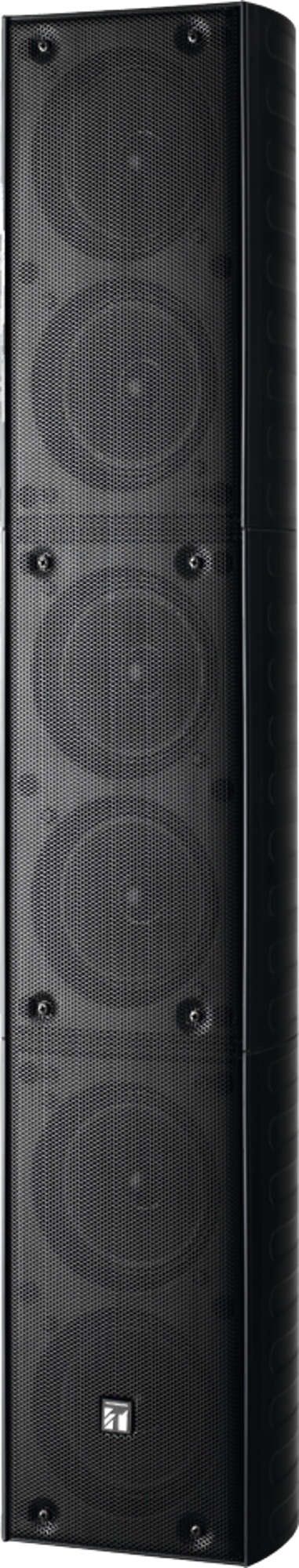

| TZ-606B | TZ-206B | TZ-206BWP | TZ-206W | TZ-406B | TZ-406BWP | TZ-406W | TZ-406WWP | TZ-606BWP | TZ-606W | TZ-606WWP | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequentie respons |
150 Hz - 16 kHz |
150 Hz - 16 kHz |
150 Hz - 13 kHz |
150 Hz - 16 kHz |
150 Hz - 16 kHz |
150 Hz - 13 kHz |
150 Hz - 16 kHz |
150 Hz - 13 kHz |
150 Hz - 13 kHz |
150 Hz - 16 kHz |
150 Hz - 13 kHz |
| Gevoeligheid (1 W, 1 m) (waarde) |
95 dB |
90 dB |
89 dB |
90 dB |
93 dB |
92 dB |
93 dB |
92 dB |
94 dB |
95 dB |
94 dB |
| Vermogen instellingen |
100V Line: 60W (170Ω), 30W (330Ω), 15W (670Ω), 7,5W (13KΩ) 70V Line: 30W (170Ω), 15W (330Ω), 7,5W (670Ω), 3,8W (1,3KΩ) |
100V line: 20W (500Ω), 10W (1KΩ), 5W (2KΩ), 2,5W (4KΩ) 70V line: 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ), 1,3W (4KΩ) |
100V line: 20W (500Ω), 10W (1KΩ), 5W (2KΩ), 2,5W (4KΩ) 70V line: 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ), 1,3W (4KΩ) |
100V line: 20W (500Ω), 10W (1KΩ), 5W (2KΩ), 2,5W (4KΩ) 70V line: 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ), 1,3W (4KΩ) |
100V Line: 40W (250Ω), 20W (500Ω), 10W (1kΩ), 5W (2KΩ) 70V Line: 20W (250Ω), 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ) |
100V Line: 40W (250Ω), 20W (500Ω), 10W (1kΩ), 5W (2KΩ) 70V Line: 20W (250Ω), 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ) |
100V Line: 40W (250Ω), 20W (500Ω), 10W (1kΩ), 5W (2KΩ) 70V Line: 20W (250Ω), 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ) |
100V Line: 40W (250Ω), 20W (500Ω), 10W (1kΩ), 5W (2KΩ) 70V Line: 20W (250Ω), 10W (500Ω), 5W (1KΩ), 2,5W (2KΩ) |
100V Line: 60W (170Ω), 30W (330Ω), 15W (670Ω), 7,5W (13KΩ) 70V Line: 30W (170Ω), 15W (330Ω), 7,5W (670Ω), 3,8W (1,3KΩ) |
100V Line: 60W (170Ω), 30W (330Ω), 15W (670Ω), 7,5W (13KΩ) 70V Line: 30W (170Ω), 15W (330Ω), 7,5W (670Ω), 3,8W (1,3KΩ) |
100V Line: 60W (170Ω), 30W (330Ω), 15W (670Ω), 7,5W (13KΩ) 70V Line: 30W (170Ω), 15W (330Ω), 7,5W (670Ω), 3,8W (1,3KΩ) |
| Luidspreker component |
10 cm conus-type x 6 |
10 cm conus-type x 2 |
10 cm conus-type x 2, spatwaterdicht |
10 cm conus-type x 2 |
10 cm conus-type x 4 |
10 cm conus-type x 4, spatwaterdicht |
10 cm conus-type x 4 |
10 cm conus-type x 4, spatwaterdicht |
10 cm conus-type x 6, spatwaterdicht |
10 cm conus-type x 6 |
10 cm conus-type x 6, spatwaterdicht |
| Bedrijfstemperatuur |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
-10°C to +50°C |
| Afwerking |
HIPS hars, verf, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, verf, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, verf, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, verf, gebroken wit (RAL 9010 of gelijkwaardig) |
HIPS hars, verf, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, verf, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, verf, gebroken wit (RAL 9010 of gelijkwaardig) |
HIPS hars, verf, gebroken wit (RAL 9010 of gelijkwaardig) |
HIPS hars, verf, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, verf, gebroken wit (RAL 9010 of gelijkwaardig) |
HIPS hars, verf, gebroken wit (RAL 9010 of gelijkwaardig) |
| Afmetingen |
135 x 746 x 128 mm (W x H x D) |
135 x 250 x 128 mm (W x H x D) |
135 x 250 x 128 mm (W x H x D) |
135 x 250 x 128 mm (W x H x D) |
135 x 498 x 128 mm (W x H x D) |
135 x 498 x 128 mm (W x H x D) |
135 x 498 x 128 mm (W x H x D) |
135 x 498 x 128 mm (W x H x D) |
135 x 746 x 128 mm (W x H x D) |
135 x 746 x 128 mm (W x H x D) |
135 x 746 x 128 mm (W x H x D) |
| Gewicht |
5,5 kg |
1,9 kg |
1,9 kg |
1,9 kg |
3,5 kg |
3,5 kg |
3,5 kg |
3,5 kg |
5,5 kg |
5,5 kg |
5,5 kg |
